Starting Platforms

Starting Platforms Make a Difference When It Comes to Competition

At Confluence Commercial Pool Equipment, we know that quality materials are necessary for the winning team. Our tremendous line of Spectrum Aquatics® starting platforms includes single and dual post units along with incredible non-slip tops and steps. The stainless steel

block tops are coated with a grit overlay providing a level of traction not available in competitor products.

The plastic tops are made of low density polyethylene and contain a non-slip surface that goes beyond industry standards. These are a great choice for facilities that remove and store the platforms frequently. They're durable and able to withstand harsh pool environments while at the same time resisting discoloration, fading, and cracking.

Get the Benefits of a Spectrum Aquatic® Starting Platform

• Unlimited color and logo options available on Xcellerator®, Record Breaker and Fusion Starting Platforms
• All starting platforms can be customized to fit virtually any existing anchor
• Powder Coating available in any color and a variety of finishes
• Electropolished and Spectra Shield® coated stainless steel provides high-quality finish that resists corrosion
• Easy installation and removal
• 18" wide competition-width H Style backstroke bar or 18" U-bar on dual post models
• Front hand and toe grips for faster takeoffs
• Easy-to-read lane numbers visible from all four sides
• Anchors and covers sold separately
• Our starting platforms comply with FINA, USA Swimming, NCAA and NFHS regulations (excluding the Quicksilver)


Anchors and Bases

There's a wide variety of custom anchors and bases available to fit into any existing anchors or proprietary pool gutter configurations.

Powder Coating and Custom Logos

Custom powder coatings are available for all starting platforms. Custom logos available for Xcellerator®, Record Breaker, and Fusion Starting Platforms.

Xcellerator®

This starting platform applies the latest in approved technology and gives swimmers an extra boost on starts by allowing the rear leg to start at a 90 degree angle and

the swimmer's center of gravity to more forward when using the side rails.

• Large 24" x 32" stainless steel top sloped at a 10° angle for optimal starting stances
• Extra large 8" x 16" step for easy mount
• Easy-to-adjust track start footrest with 11 location setting options to accommodate all heights and levels of flexibility
• Uses single post anchor with patented anti-wobble design allowing for easy removal
• Side handles included to enhance speed and faster takeoffs
• Backstroke handles with versatile 18" H-bar
• Suggested setback of 30" – accommodates anchor setbacks of 18" to 36"
• Standard surface color is black or white, with custom colors, powder coat, and logo options available
• (logos can be placed on platform top, wedge and/or step)

57282 - XCELLERATOR SINGLE POST or XCELLERATOR - SINGLE SQUARE POST

Fusion

• Built-in Colorado Time Systems® Relay Judging Platform (RJP) to calculate reaction time and relay exchanges
• Speedlights across the front of the RJP and step-side flash simultaneously with starting system horn and strobe light
• Lights provide an additional signal to athletes who are deaf or hard of hearing
• Easy, out-of-the-way plug-ins for RJP touchpad, speedlights, lane speaker and back-up buttons
• Uses single post anchor with patented anti-wobble, design allowing for easy removal
• 24" x 32" non-slip surface platform top for extra-fast starts
• Includes practice top so the RJP can be stored away from the pool when not in use
• Side handles to enhance speed and faster takeoffs
• Backstroke handles with versatile 18" H-bar
• Suggested setback of 30" – accommodates anchor setbacks of 18" to 36"
• Available in gray, with custom colors and logo options available

57291 - FUSION SINGLE POST

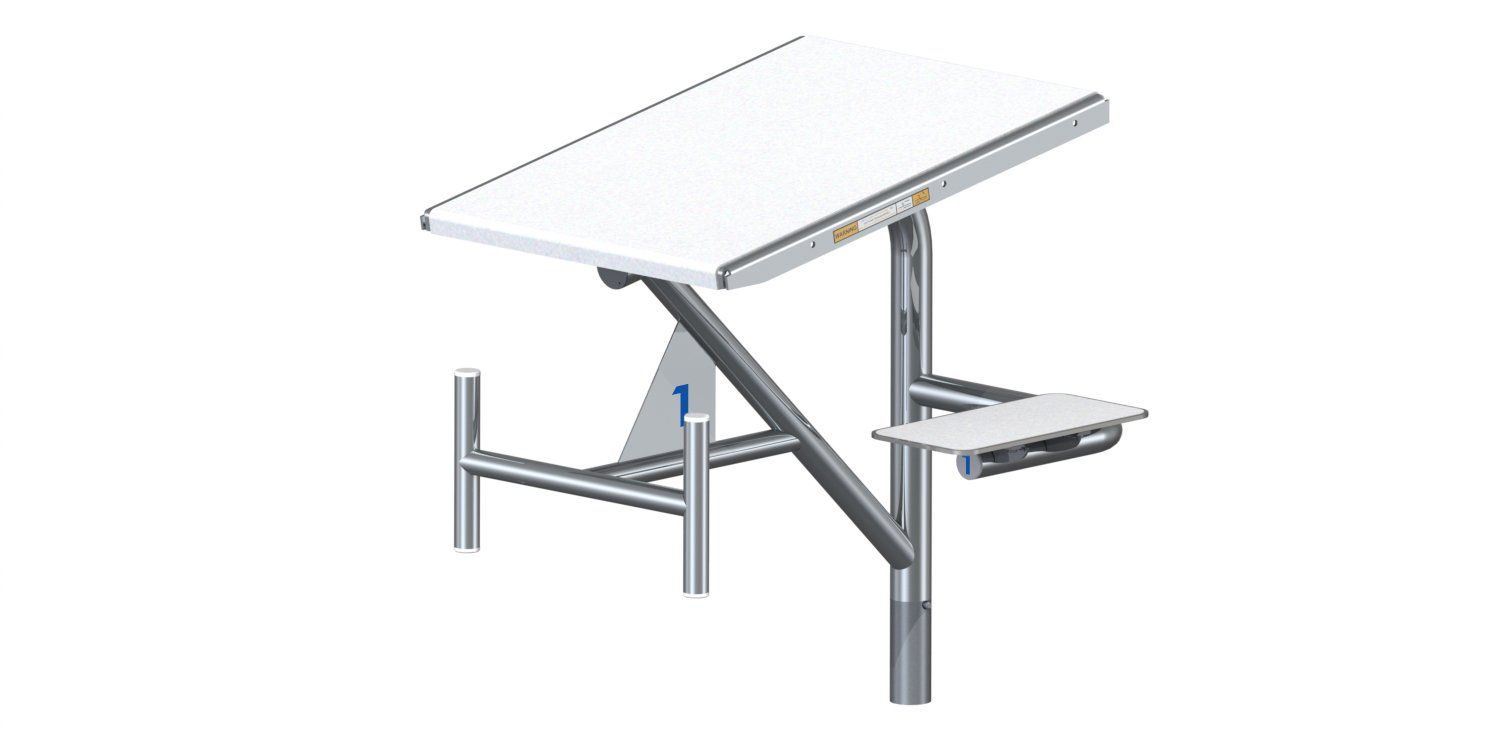

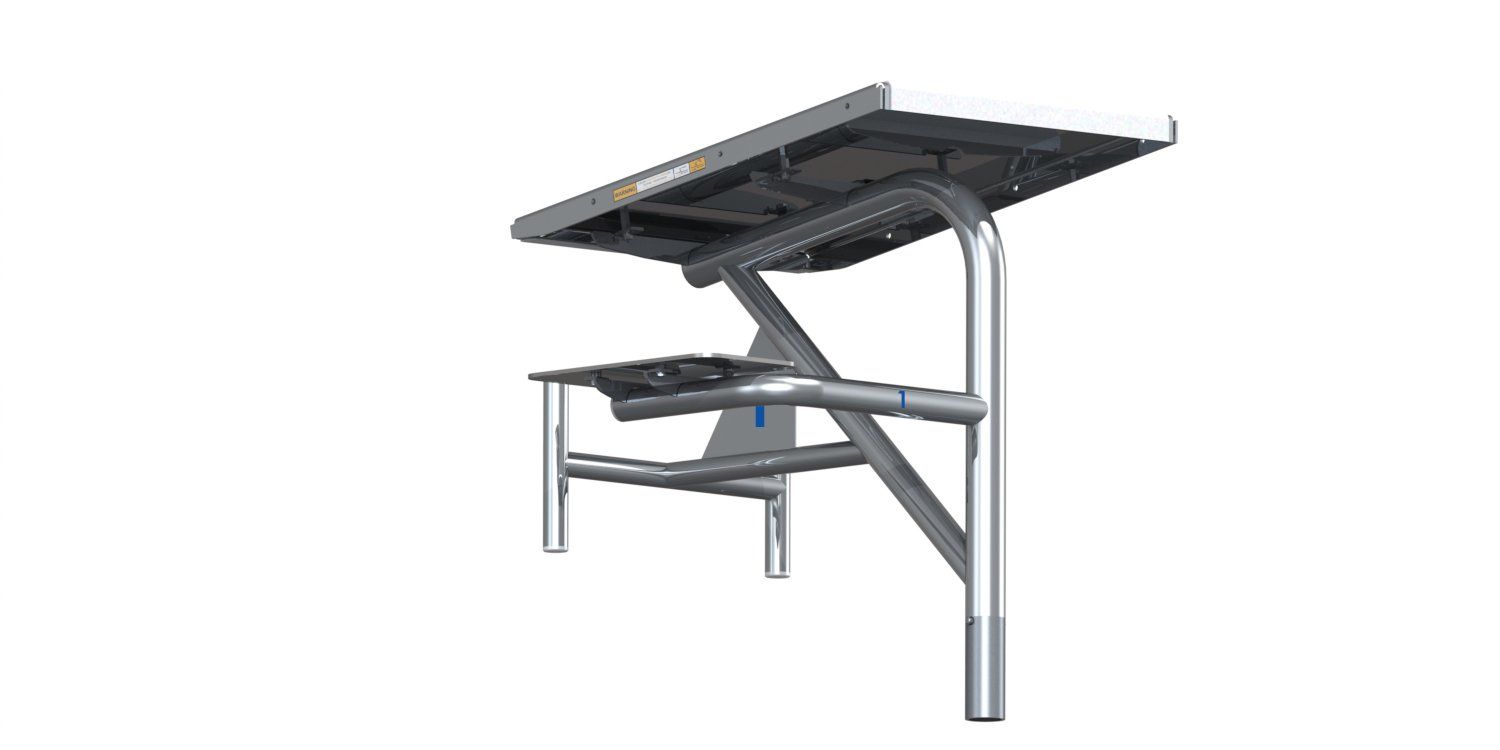

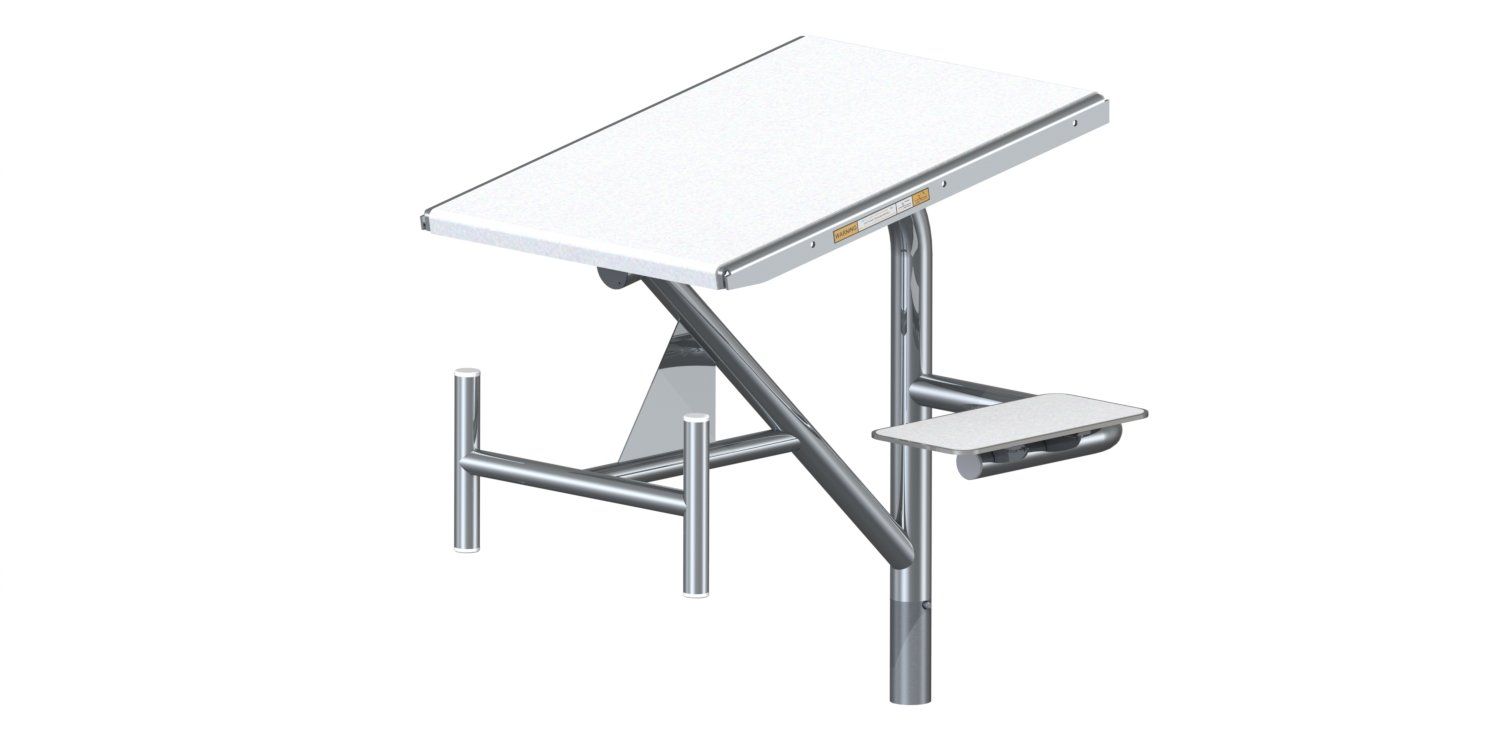

Record Breaker

• Large 24" x 32" stainless steel top sloped at a 10° angle for optimal starting stances
• Extra large 8" x 16" step for easy mount
• Easily upgradeable to Xcellerator with addition of side handles & track start footrest
• Uses single post anchor with patented anti-wobble design allowing for easy removal
• Non-slip access step, available on side or rear
• Large side step accommodates anchor setbacks of 18" to 36"
• Rear step accommodates anchor setbacks of 30" to 36"
• Backstroke handles with versatile 18" H-bar
• Standard surface color is black or white, with custom colors, powder coat, and logo options available

57283 - RECORD BREAKER - SINGLE POST or RECORD BREAKER - SINGLE SQUARE POST

Growler

The Growler is great for all levels of competition and features the largest top in the industry.

• Large 25" x 32" single piece LDPE platform with molded-in, non-slip surface; no exposed
• bolts or hardware
• Front hand and toe grip for faster takeoffs
• 8" x 10" access step with molded-in, non-slip surface. Available on side or rear
• Accommodates anchor setbacks of 18" to 36"
• Side step accommodates anchor setbacks of 18" to 36"
• Rear step accommodates anchor setbacks of 30" to 36"
• Backstroke handles with versatile 18" H-bar



21653 - GROWLER - SIDE STEP

21657 - GROWLER - REAR STEP

Single Post Starting Platforms

GRIZZLY

This is a very popular starting platform. Great for all levels of competition.

• 23" x 25" single piece LDPE platform with molded-in, non-slip surface; no exposed bolts
• or hardware
• Front hand and toe grip for faster takeoffs
• 8" x 10" LDPE side or rear access step with molded-in, non-slip surface
• Accommodates anchor setbacks of 18" to 30"
• Side step accommodates anchor setbacks of 18" to 30"
• Rear step accommodates anchor setbacks of 24" to 30"
• Backstroke handles with versatile 18" H-bar

21654 - GRIZZLY - SIDE STEP

21655 - GRIZZLY - REAR STEP

QUICKSILVER

• Ideal for beginners and pools with large water drafts.
• 23" x 25" LDPE platform with molded-in, non-slip surface; no exposed bolts or hardware
• Front hand and toe grip for faster takeoffs
• Horizontal backstroke bar
• Stainless steel construction
• Suggested setback of 20" – accommodates setbacks of 12" to 24"
• Does NOT meet FINA, USA Swimming, NCAA or NFHS regulations
• Available in five colors

57289 - QUICKSILVER SINGLE POST

MYRTHA HYBRID



• Adjustable anti-skid platform measures 74cm x 52cm
• Available in blue or black top covers
• Back foot wedge can be adjusted in five (5) positions
• Platform base available in standard single post, square expansion post, dual expansion
• post, flange mount, and custom configurations for existing anchors
• Platform base available in 304L or 316L stainless steel
• Large step with custom logo options available


Dual Expansion Post Starting Platforms

• Eliminates dual post anchor "Wobble"
• Easy to install into EXISTING or NEW DUAL POST ANCHORS (also available in square single post).
• Platform Legs Expand into anchors - there's no need to rely on the longevity of small anchor wedge parts to tighten around the block legs.

Ask about our dual post expansion anchor plugs too.

BIGHORN

• 23" x 25" non-slip surface with no exposed bolts or hardware
• 20" molded-in, non-slip surface step tread
• Standard Bighorn accommodates anchor setbacks of 20" to 30"
• Long Reach model accommodates an anchor setback up to 40"
• Backstroke handle with versatile 18" U-bar

21095 - BIGHORN

21115 - LONG REACH BIGHORN

COUGAR

• 25" x 32" non-slip surface with no exposed bolts or hardware
• 8" x 10" access step with molded-in, non-slip surface available in
• side or rear
• Side step accommodates anchor setbacks of 18" to 40"
• Rear step accommodates anchor setbacks of 30" to 40"
• Backstroke handle with versatile 18" U-bar

21135 - COUGAR - SIDE STEP

21145 - COUGAR - REAR STEP

XCELLERATOR®

• Large 24" x 32" stainless steel non-slip top sloped at a 10° angle for optimal starting stances
• Extra large 8" x 16" step for easy mount
• Adjustable track start footrest attachment with 11 locations setting options
• Side handles and 18" backstroke U-Bar included to enhance speed and quick takeoffs
• Non-slip side access step available
• Suggested setback of 30" – accommodates anchor setbacks of 18" to 36"
• Comes standard black or white top, custom colors and logo options available

133171 - XCELLERATOR DUAL POST

RECORD BREAKER

• Large 24" x 32" stainless steel non-slip top sloped at a 10° angle for optimal starting stances
• Extra large 8" x 16" step for easy mount
• Easily upgradeable to Xcellerator® with addition of side handles & track start footrest
• Non-slip access step - available on side or rear
• Side step accommodates anchor setbacks of 18" to 36"
• Rear step accommodates anchor setbacks of 30" to 36"
• Backstroke handles with versatile 18" U-bar
• Comes standard black or white top, custom colors, and logo options available

57741 - RECORD BREAKER DUAL POST

Starting Platform Anchors

SINGLE POST ANCHOR

This unique, patented anti-wobble and locator pin design is superior to all other single-set type anchors and is second to none in performance.

• No tools required when inserting or removing starting platform
• Machined bronze anchor body ensures extremely tight tolerances & offers superior corrosion resistance
• Locating slot design eliminates rotation and guarantees proper alignment of platform
• Includes stainless steel lid and removal tool
• Optional anchor set tool available
• Bulkhead customization available

21705 - ANCHOR SET TOOL

21700 - SINGLE POST ANCHOR

42057 - BULKHEAD ANCHOR

DUAL POST ANCHOR

This is designed for use with dual post starting platforms and made of 304L stainless steel. The welded fixture design allows for easy installation, and the anchors are set exactly 20" center-to-center for ease of platform installation and removal. Anchors are provided with bonding lug, caps, and removal key.

24070 - 6" DEEP DUAL POST ANCHOR SET

24071 - 10" DEEP DUAL POST ANCHOR SET

Backstroke Start Devices

Backstroke swimmers will routinely risk a slip start when pushing off a pool wall or slippery touchpad. These backstroke start devices are designed to reduce slipping and are available in two different models: automatic retraction and stationary. U.S. Patent No. 10,245,524.

• Features a 65cm x 8cm (25.6" x 3.1") nonslip wedge with a 10° angle to secure foot
• placement along pool wall
• Easily adjustable and locks into place, allowing swimmers to select desired location of
• the nonslip wedge along the pool wall
• Automatically retracts up and out of the water so as not to interfere with flip turns
• and touchpad interactions, eliminating the need for manual removal
• Compatible with nearly all block types and pool configurations - it can be strapped
• around a starting platform for easy set up
• Custom attachment options are also available

Here's how they work:

1. Unlock and pull wedge strip to desired location
2. Place feet on the nonslip wedge
3. Proceed with your backstroke start
4. Wedge will automatically retract out of the water

STATIONARY BACKSTROKE START WEDGE

The Stationary Backstroke Start Wedge allows swimmers to perfect their backstroke takeoffs at the pool.

• Features a 65cm x 8cm (25.6" x 3.1") nonslip wedge with a 10° angle to secure foot placement along pool wall
• Same non-slip wedge and straps as our top-of-the-line Backstroke
• Start Device
• Can easily attach to nearly any existing starting block frame
• Includes stainless steel hardware to resist corrosion
• FINA, USA Swimming and NCAA compliant, when installed correctly

For those in a highly competitive swimming club or university looking for a way to perfect backstroke starts with a wedge for the upcoming championship meets, the Stationary Backstroke Start Wedge beats all!

EXTRA ATTACHMENT LOOPS 171081

Starting Platform Maintenance and Upgrades

COVERS

Starting Platform protects your pool by preventing unauthorized use of the platforms while at the same time shielding the platform surface from the elements when not use.

153174 - STARTING PLATFORM HARD COVER - WHITE

• Sturdy precision vacuum formed ABS plastic
• Includes elastic retaining strap and optional cable lock
• Universal fit covers all platforms up to 25" x 32" in size, with and without wedges
• UV protection
• Durable textured surface
• Easy stack = Easy storage

21400 - STARTING PLATFORM SOFT COVER

• UV rated polyethylene material with draw cord
• Universal fit covers all platforms up to 25" x 32" in size

MAINTENANCE

It's essential to clean your starting platforms on a regular basis to ensure longevity and minimizing rust formation. Routine cleanings also reduces incidents of stains and discoloration on the block surface.

UPGRADES

Many of our starting platforms can be upgraded to add the trackstart wedge and/or side rails to help your athletes start with confidence.
